Products
Solar Water Pump Controllers
We design and build many of our own controllers, so we know how to support them. Many of our solar submersible pumps require a controller to ensure that you get the most out of the solar power that is supplied to them. These controllers protect the pumps from running dry, too much voltage, too little voltage, etc…
To select the proper controller for your application, please get in touch with one of our customer service representatives who are standing by, ready to help you.
 | CM MP Solar Pump Controller – Efficient Solar Power AC/DC ControllerThe CM MP Solar Pump Controller adds advanced monitoring and control to your solar pump system. It allows you to view electrical parameters, record alarm history, connect pressure or flow sensors, and integrate float or pressure switches for automatic operation. With optional WiFi or GSM, the CM MP also enables full remote monitoring and programming. It can be used permanently or simply for setup, with all settings saved directly to the pump’s onboard electronics. | |

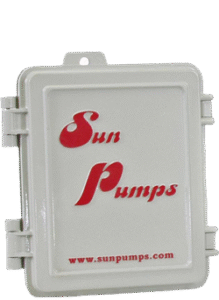

 | Solar Pump Controller PCA-120-BLS-M2 (For Surface Motors Only)
Specifications
Nominal Voltage Range: 75-120
Max Open Circuit Voltage: 200
Minimum Open Circuit Voltage: 90
Max Load Current: 12.5 Amps | |
| Solar Pump Controller PCA-120-BLS-M2S..For Submersible Pumps Only
Specifications
Nominal Voltage Range: 75-120
Max Open Circuit Voltage: 200
Minimum Open Circuit Voltage: 90
Max Load Current: 12.5 Amps | |

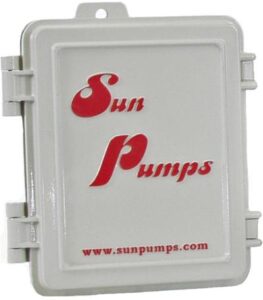

 | Solar Pump Controller PCA-30M1D (For SDS Series Pumps)
Specifications
Max Load Power: 150 watts
Max Load Current: 5 amps
Max Open Circuit Voltage: 45 volts
Max Regulated Output Voltage: 30 | |
| Solar Pump Controller PCA-60-BLSM2 (For Surface Pumps Only)
Specifications
Nominal Voltage Range: 30-60
Max Open Circuit Voltage: 100
Minimum Open Circuit Voltage: 30
Max Load Current: 14 Amps | |
| Solar Pump Controller PCA-60-BLS-M2S..For Submersible Pumps Only
Specifications
Nominal Voltage Range: 30-60
Max Open Circuit Voltage: 100
Minimum Open Circuit Voltage: 30
Max Load Current: 14 Amps | |

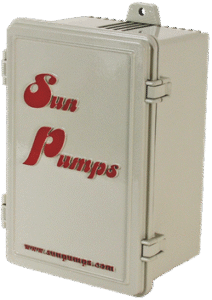

 | Solar Pump Controller PCC-120BLS-M2 (For Surface Pumps Only)
Specifications
Nominal Voltage Range: 75-120
Max Open Circuit Voltage: 200
Minimum Open Circuit Voltage: 90
Max Load Current: 12.5 Amps | |
| Solar Pump Controller PCC-120-BLS-M2S..For Submersible Pumps Only
Specifications
Nominal Voltage Range: 75-120
Max Open Circuit Voltage: 200
Minimum Open Circuit Voltage: 90
Max Load Current: 12.5 Amps | |
| Solar Pump Controller PCC-180BLS-M2S..For Submersible Pumps Only
Specifications
Nominal Voltage Range: 120-180
Max Open Circuit Voltage: 300
Minimum Open Circuit Voltage: 120
Max Load Current: 12.5 Amps | |
| Solar Pump Controller PCC-180BLS-M2 (For Surface Pumps Only)
Specifications
Nominal Voltage Range: 120-180
Max Open Circuit Voltage: 300
Minimum Open Circuit Voltage: 120
Max Load Current: 12.5 Amps
Certification: ETL Listed |
